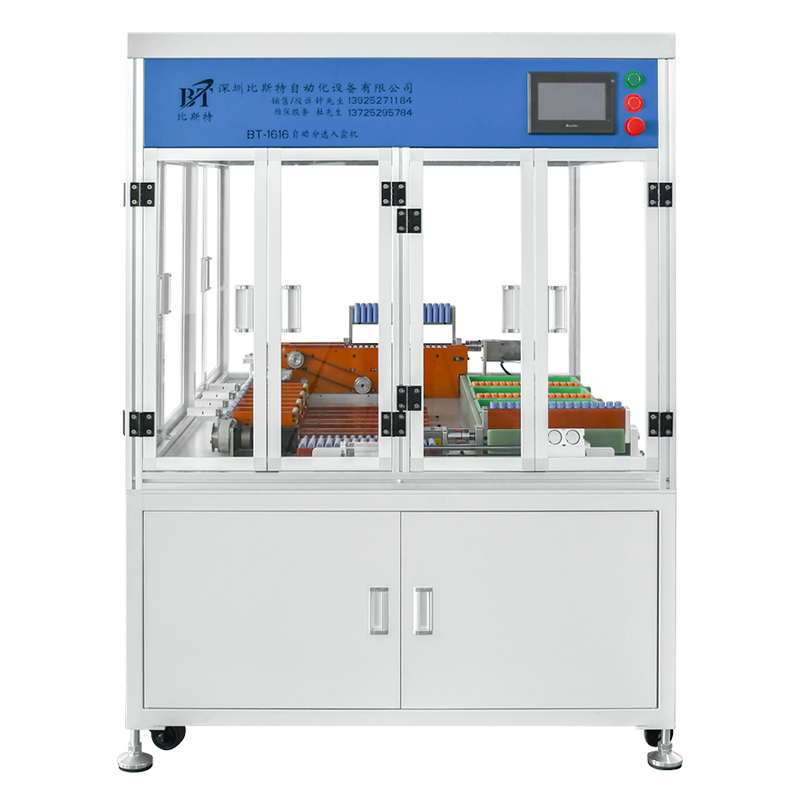

BT-1616-10 Battery cell Automatic Sorting and boxing machine
2025-11-20 15:04:29
Product features：
Main function：
16*16 plastic box with batteries, automatically taken out to enter the internal
resistance voltage sorting
The coding function can be added after sorting
Automatically load 10*16 plastic box according to the set position
一、Main function
16*16 plastic box with batteries, automatically taken out to enter the internal
resistance voltage sorting
The coding function can be added after sorting
Automatically load 10*16 plastic box according to the set position
二、Product characteristics
16*16 plastic box with batteries, automatic feeding of productsin assembly line mode
Feeding and grabbing 16PCS cells at one time
Standard IR test: HK3560
18500 and 18650 compatible
Sorting gear: 4 OK, 2 NG
三、Product parameters
Power | AC220V 50/60HZ 4KW | Voltage | 0.00000V-6.0000V | |||
Air pressure | 0.4-0.8Mpa,Air source must be used when there is afilter device to ensure that the flow of water-free impurities. | Intemal resistance | 000.00mΩ-999.99mΩ | |||
Optional Gear | 4OK,2NG | |||||
Standard test instrument | HK3560 | Test Data | U disk storage,can be copied to the computer | |||
Optional tester | HIOK13561/HIOK13562/HK3561 | Communication Interface | RS485 | |||
Control device | PLC Touch screen control | Test method | 4wire system | |||
Run power | 750W Servo electic | Test pin | DZ¹00-214A30G | |||
dntive cell ranoe | 18500/18650 | Equipment dimensions | L2200°W1600'H1710MM | |||
Droductivit | About 500DPCS cellshour | Weight | 400KG | |||
